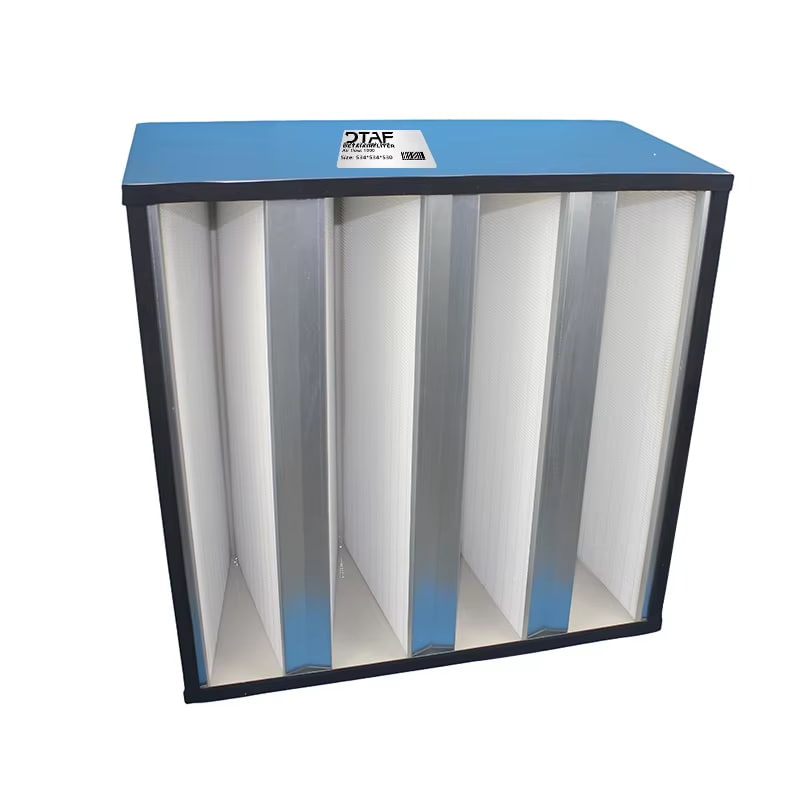

High Capacity Minipleat V Bank Filter

Brand DTAF
Frame Galvanized iron , Aluminum , Stainless steel
Efficiency 99.9%
Filter material Micro glass fiber

Description

Box-type V-type filter / V bank filter technical specification.

Model	Overall size L×W×D	Rated Airflow （m³/h）	Initial pressure drop（Pa）
Model	Overall size L×W×D	Rated Airflow （m³/h）	Arrestance F7@0.4um 80%≤E<90%	Efficiency F8@0.4um 90%≤E<95%	Efficiency E10@MPPS 85%≤E<95%	Efficiency E12@MPPS 99.5%≤E <99.95%	Efficiency H13@MPPS 99.95%≤E <99.995%
DT5V592.592-292	592×592x292	3000	60	70	110	160	220
DT4V592.592-292	592x592x292	2400
DT4V287.592-292	287x592x292	1200
DT6V610.610-292	610x610x292	3400
DT5V610.610-292	610x610x292	3000
DT4V610.610-292	610x610x292	2400
DT4V305.610-292	305x610x292	1200

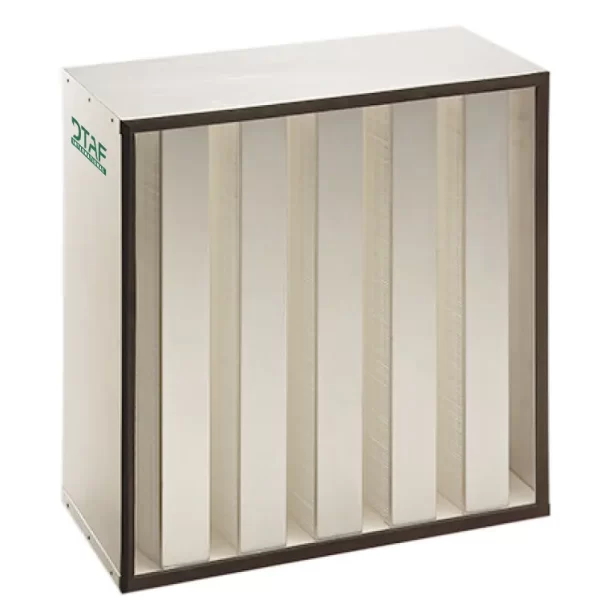

High Capacity Minipleat V Bank Filter BioMAX V2400 / Box Filter

Engineered to provide the optimum combination of efficiency and airflow. They are used in a wide range of applications, including pharmaceutical facilities, hospitals, biotech laboratories and other environments where control and removal of airborne contaminants is of paramount importance in the protection of people, processes, and equipment.

Durable Construction

The High Capacity Minipleat V Bank Filter V2400 is constructed of durable, aluminum enclosing frame with galvanized aluminum and stainless steel options also available.

Our project case

Leak Free Sealant:

Non off-gasing, polyurethane pack to frame sealant insures leak free filter integrity and operation.

High Dust Holding Capacity:

The V2400 offers the highest volume of filter media allowing for higher dust capacity, longer life and lower pressure drop drop than other styles of HEPA filters.

Higher Velocities:

Because of the filter integrity, the V2400 can be installed in systems with air flow capacitites up to 650 fpm velocity. The V2400 is offered with standard close cell, neoprene gasket on the downstream side. Other gasket options are available upon request.

How to Choose a Truly Sustainable Air Filter: A Guide to Lowering Your Carbon Footprint

Every air filter has a finite lifespan, eventually requiring replacement and contributing to waste. A common question arises: can you improve sustainability simply by extending a filter’s use? The answer is yes—but only if the filter, such as a V bank HEPA filter, is specifically engineered to hold large amounts of dust while maintaining a low pressure drop.

A clogged, standard filter forces your HVAC system to work harder, leading to higher energy consumption and decreased filtration efficiency. True sustainability isn’t just about longevity; it’s about consistent performance. A sustainable air filter must be designed from the start to maintain low energy use throughout its entire service life.

At its core, sustainability in air filtration is complex. The most eco-friendly-looking option isn’t always the one that minimizes climate impact. To truly reduce your filter’s carbon footprint, it’s essential to evaluate its entire lifecycle:

Prioritize Energy Efficiency: Address energy consumption first, as this is the largest contributor to a filter’s environmental impact.
Assess Other Features: Then, consider other characteristics that further reduce its overall environmental footprint.

Ready to Select the Most Sustainable Filter for Your Property?

Making the right choice lowers your energy bills and reduces your environmental impact. Contact us today for expert guidance in selecting a high-performance, sustainable air filter tailored to your HVAC system’s needs.

Frequently Asked Questions

1. What is a V bank filter?

A high-efficiency, compact air filter made of multiple bags in a V-shape.

2. What are its main benefits?

High dust capacity, energy efficiency, and space-saving design.

3. What MERV rating does it have?

Typically MERV 13 to 15. EN 1822-1 H11 to H14.

5. When to replace it?

When the pressure drop increases too much or on a scheduled timeframe.
