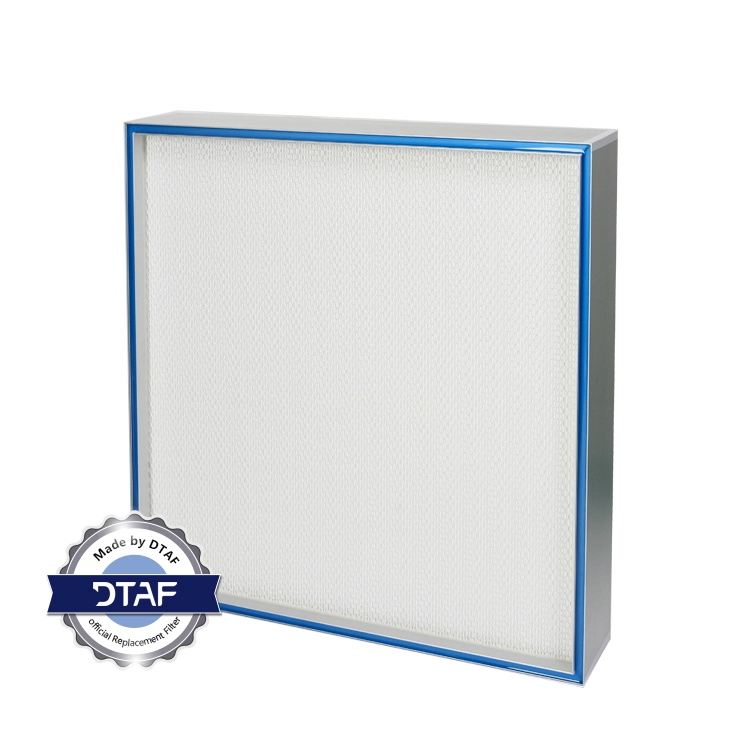

Liquid Tank Filter

Liquid Tank Filter

  • Clean room or purification equipment supply.
  • Peripheral gel seals or top gel seals.
  • Jelly glue has excellent sealing properties.
  • Polyurethane gel has good resilience and can bedisassembled for many times.

Description

The liquid tank of the liquid tank of the high efficiency filter without partition is filled with polyurethane two-component gel, and this is used as the installation seal, which is highly reliable and leak-free, and is suitable for on-site leakage detection of DOP dust.
  • Air supply and exhaust for clean space or purification equipment
  • Side liquid tank and top liquid tank
  • Reliable sealing effect
  • Polyurethane gel has good resilience and can be disassembled and reassembled many times.
  • Wet and dry double sealing is available for special needs
Materials and conditions of application Frames :    Aluminum profiles Spacer : Hot melt adhesive Filter Paper : High Efficiency Fiberglass Filter Paper Seal : PU gel Operating conditions : <80%/100%RH, 40°C
Overall dimensions Air volume Rated inital resistance
Top gel seal HEPA filter WxHxD(mm) (m³/h) 0.45m/s H13(Pa) H14(Pa)
610x610x95 600 108 113
570x1170x95 1080
610x610x104 600 73 83
570x1170x104 108
Overall dimensions Air volume Rated inital resistance
Side gel seal HEPA fiter WxHxD(mm) (m³/h) 0.45m/s H13(Pa) H14(Pa)
610x610x69 525 100 105
570x1170x69 970
610x610x90 525 75 80
670x670x90 970
610x610x117 525 65 70
570x1170x117 970

Details Options for Liquid Tank Filter

Gel Seal

  • Constructed with a built-in channel in the filter frame which contains a non-flowing, non-hardening urethane gel sealant
  • Designed for framing systems and housings equipped with a “knife edge” seal
  • Liquid Tank Filter CS with Gel Seal is available with cell side (filter frame) depths of 4 3/4”

Reverse Gel Seal

  • Constructed with the built-in gel channel located at the back of the upstream side of the filter
  • Designed for housings and ducted modules equipped with a “knife edge” seal
  • Excellent replacement filter for permanently installed ducted ceiling modules

Neoprene Gasket Seal

  • Constructed with a 3/4” wide by 1/4” thick closed cell neoprene gasket
  • Designed for “lay-in” frame systems requiring filters with gaskets of this type
  • Standard models are furnished with the gasket on the downstream face of the filter
  • Liquid Tank Filter CS with Gasket Seal is available with cell side (filter frame) depths of 2 3/4”
  • Wood cell sides are available upon request

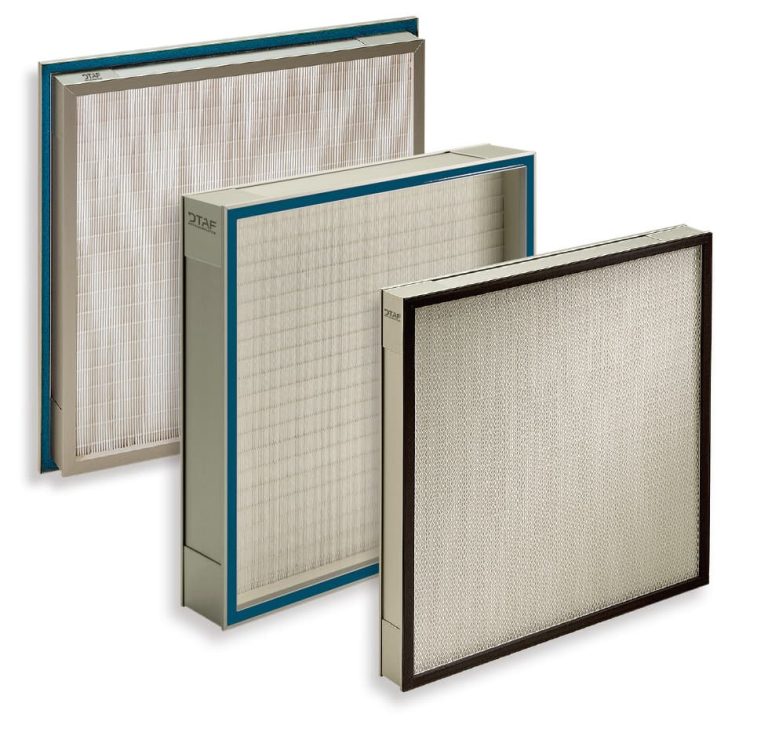

Detail_drawing_of_the_liquid_tank_HEPA_filter

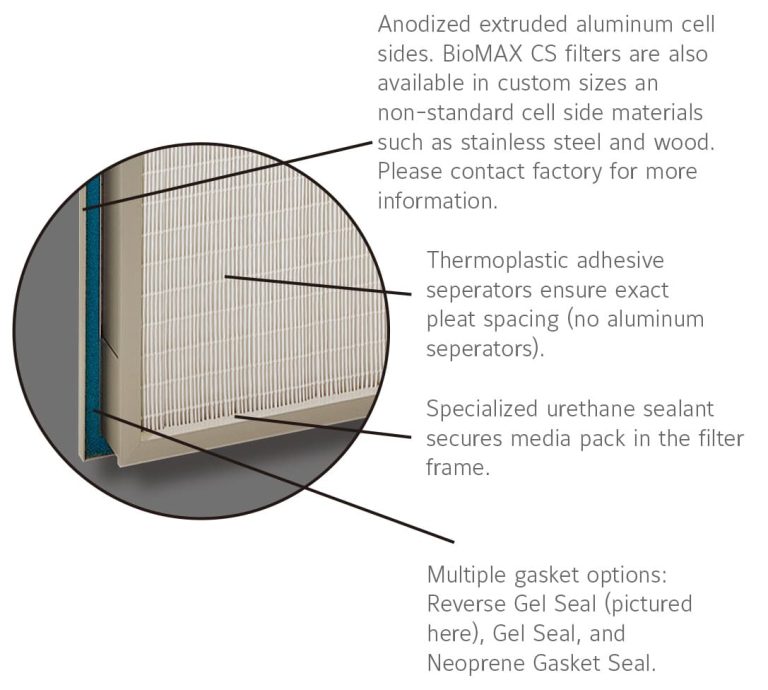

Detail_drawing_of_HEPA_filter
