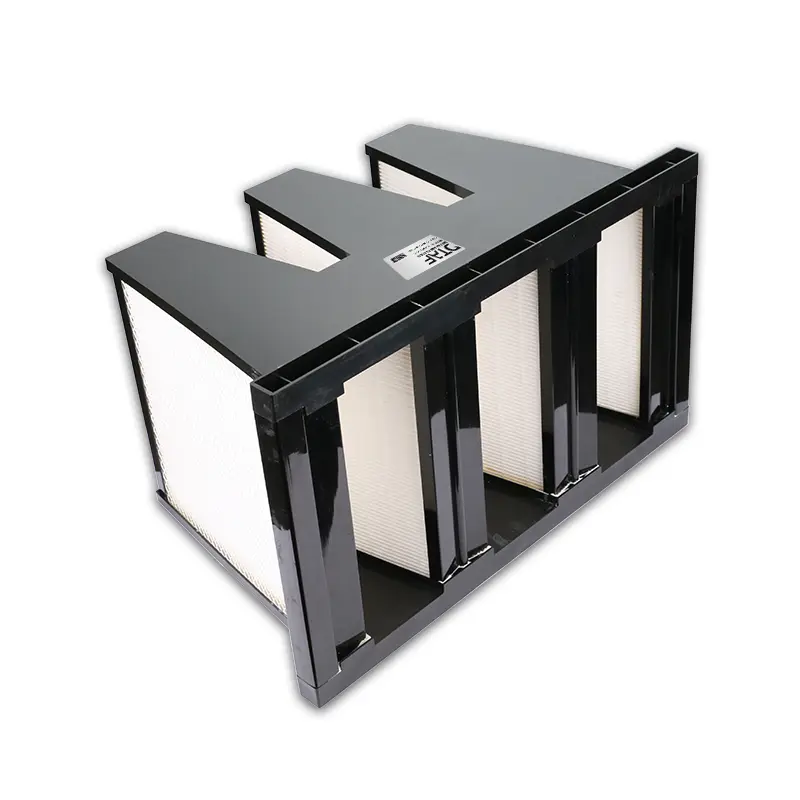

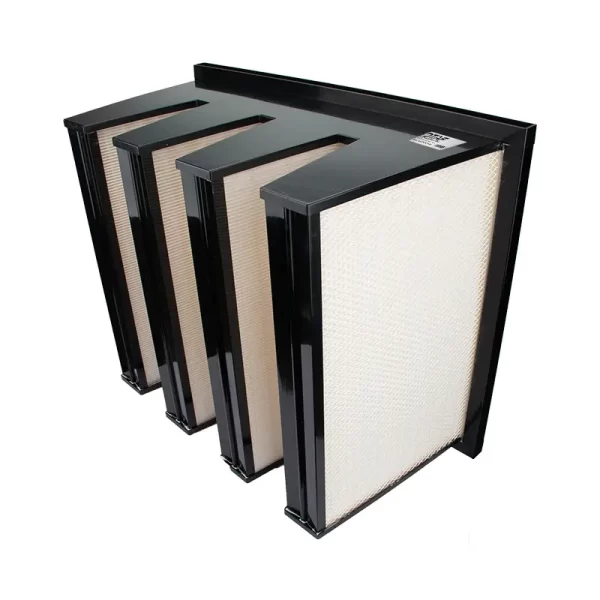

V Bank Filter Select 4V

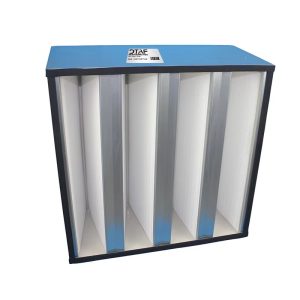

Box type or V-bank type.

Large filter area, suitable for large volume of air.

F7-H14 are available.

Description

The V-type filter is also known as the large volume/W-type/composite filter. The V-type filter is made of low-resistance ultra-fine glass fiber filter paper and provides an efficient and high-performance solution for air filtration applications. Its compact and well-designed structure offers a large filtration area, enabling it to operate at high wind speeds while maintaining excellent filtration efficiency. It is highly suitable for use as the second-stage filtration stage in the air intake system, the air supply terminal of HVAC equipment, the negative pressure end of the exhaust purification system, and in ventilation ducts, etc. The V-type filter ensures the improvement of air quality and the protection of the system. Choosing our V-type filter will enable you to achieve reliable performance, durability, and optimal airflow management in commercial and industrial environments.

Features and Specifications

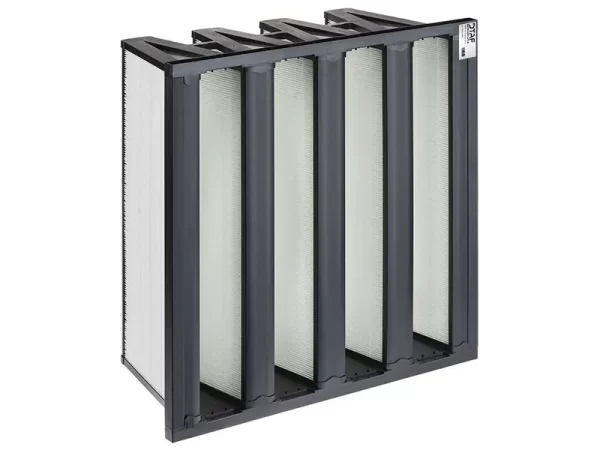

Design: Compact filter with a high-tech nanofiberbased media. The 4V design is made from robust plastic for a light weight but stable construction. An integrated handle enables ease of transportation and installation.

Model	Overall size L×W×D	Rated Airflow （m³/h）	Initial pressure drop（Pa）
Model	Overall size L×W×D	Rated Airflow （m³/h）	Arrestance F7@0.4um 80%≤E<90%	Efficiency F8@0.4um 90%≤E<95%	Efficiency E10@MPPS 85%≤E<95%	Efficiency E12@MPPS 99.5%≤E <99.95%	Efficiency H13@MPPS 99.95%≤E <99.995%
3V	490×490x292	1300	60	70	110	160	220
4V	592x592x292	2400
4V	287x592x292	1200
6V	610x610x292	2600
5V	610x610x292	2600
4V	610x610x292	2400
4V	305x610x292	1200

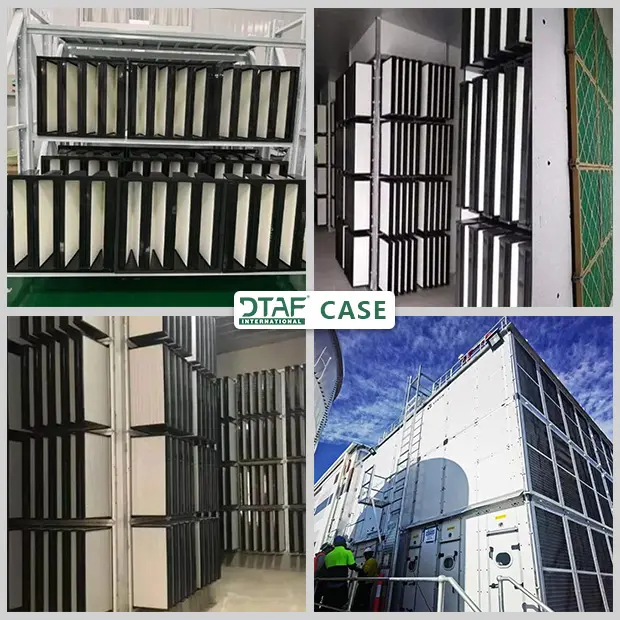

Our project case

Our V Bank Filters are engineered for superior performance and durability in a wide range of demanding environments. Trusted in applications such as swine farms, AHU systems, compressed air filtration, air intake systems, and gas turbine filtration, our filters ensure high efficiency and reliable operation. With a rugged design, consistent performance, and exceptional filtration quality, the V Bank Filter helps your equipment run smoothly and extends its operational life. Choose our V Bank Filters for long-lasting protection and optimized system stability.

How to Choose a Truly Sustainable Air Filter: A Guide to Lowering Your Carbon Footprint

Every air filter has a finite lifespan, eventually requiring replacement and contributing to waste. A common question arises: can you improve sustainability simply by extending a filter’s use? The answer is yes—but only if the filter, such as a V bank HEPA filter, is specifically engineered to hold large amounts of dust while maintaining a low pressure drop.

A clogged, standard filter forces your HVAC system to work harder, leading to higher energy consumption and decreased filtration efficiency. True sustainability isn’t just about longevity; it’s about consistent performance. A sustainable air filter must be designed from the start to maintain low energy use throughout its entire service life.

At its core, sustainability in air filtration is complex. The most eco-friendly-looking option isn’t always the one that minimizes climate impact. To truly reduce your filter’s carbon footprint, it’s essential to evaluate its entire lifecycle:

Prioritize Energy Efficiency: Address energy consumption first, as this is the largest contributor to a filter’s environmental impact.
Assess Other Features: Then, consider other characteristics that further reduce its overall environmental footprint.

Ready to Select the Most Sustainable Filter for Your Property?

Making the right choice lowers your energy bills and reduces your environmental impact. Contact us today for expert guidance in selecting a high-performance, sustainable air filter tailored to your HVAC system’s needs.

Frequently Asked Questions

1. What is a V bank filter?

A high-efficiency, compact air filter made of multiple bags in a V-shape.

2. What are its main benefits?

High dust capacity, energy efficiency, and space-saving design.

3. What MERV rating does it have?

Typically MERV 13 to 15. EN 1822-1 H11 to H14.

4. Where is it used?

5. When to replace it?

5. When to replace it?

When the pressure drop increases too much or on a scheduled timeframe.
